In harsh industrial control environments, electromagnetic interference sources such as high-power motors, frequency converters, and high-voltage devices are widely present, and the powerful electromagnetic fields released during their operation pose a threat to adjacent cable lines. To ensure stable signal transmission, the shielding design of cables and their connectors can effectively isolate external electromagnetic interference, protecting the integrity and accuracy of signals on the transmission path. If the signal cable between the sensor and the control unit lacks effective shielding, it is highly susceptible to electromagnetic interference from surrounding motors and other equipment, which can cause signal distortion or interruption, seriously affecting the control accuracy and stability of the production process.

Faced with the severe challenges in the field of precision manufacturing, especially the technical bottlenecks in high-precision applications such as CNC machine tools, GSEE-TECH has launched shielded connectors. The special design components of shielded connectors can effectively weaken the impact of external electromagnetic interference on feedback signals of key components such as position sensors, significantly improve signal quality, and ensure that machine tools can process according to preset high-precision parameters, thereby maintaining the accuracy and reliability of the overall production process.

Product details

Advantages of shielded connectors
Adopting an all metal shell design to reduce signal distortion and interruption, ensuring the stability of signal transmission
Ensure the accurate transmission of sensor feedback signals and control instructions, and improve the control accuracy of the production process
Reduce equipment failure rate caused by electromagnetic interference, minimize downtime, and improve production efficiency
Reducing equipment maintenance needs caused by signal issues can help lower overall operating costs

Product parameters

M8 fully metal shielded eight port dual signal distribution box

Model: JBS8M8-4P-D2/S13
Protection level: IP67
Rated current of signal: 0.5A
Rated power supply current: 2A
Rated working voltage: 10... 30V
Shell material: Aluminum
Core specifications: 2x22AWG+16x26AWG
Transmittable signals: multiple I/O signals, etc

M8 A-Code all metal shielded connector

Model: SZ4212-0
Protection level: IP67
Rated current: 4A
Rated voltage: 30V
Connection method: screw connection
Shell material: Copper nickel plating
Cable outer diameter range that can be connected: 4-6mm
Transferable signals: dual bit I/O, EtherCAT data communication signals, etc

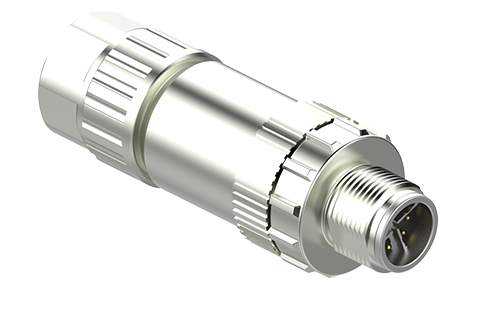

M12 X-Code all metal shielded connector

Model: EZ8268-0/9
Protection level: IP67
Rated current: 1A
Rated voltage: 30V
Connection method: screw connection
Shell material: Copper nickel plating
Cable outer diameter range for connectors: 6-8mm
Transmittable signal: Gigabit Ethernet data communication

Contact us for further product information!
