Product recommendation | GSEE-TECH's economical IP20 IO Link Hub empowers intelligent manufacturing!
In the field of industrial automation and intelligent manufacturing, the IO Link protocol communication solution has become the preferred choice for many industrial automation application scenarios due to its excellent data transmission efficiency and high configuration flexibility. As a key component of IO Link electrical control solutions, the performance and stability of IO Link Hub are crucial for improving the operational efficiency of automated production lines and ensuring product quality.

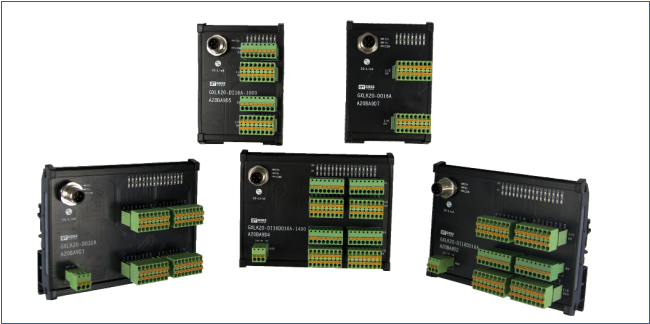

Product details
GSEE-TECH's IP20 protection level IO Link Hub is easy to integrate, cost-effective, and can achieve flexible data acquisition and signal control.
Application advantages
1. Provide diverse channel types to meet the needs of different application scenarios. The 2I/O channel is equipped with an independent power supply system, with each channel providing 24VDC power supply, ensuring significantly improved reliability and stability of signal transmission. 3. Adopting a plug and unplug I/O terminal design simplifies the wiring process, facilitates spare parts replacement, and improves maintenance efficiency. 4 has excellent compatibility, not only seamlessly integrating with Gino Technology's IO Link main station, but also perfectly compatible with third-party IO Link main stations. 5. Flexible configuration and high cost-effectiveness, providing users with more cost-effective solutions.

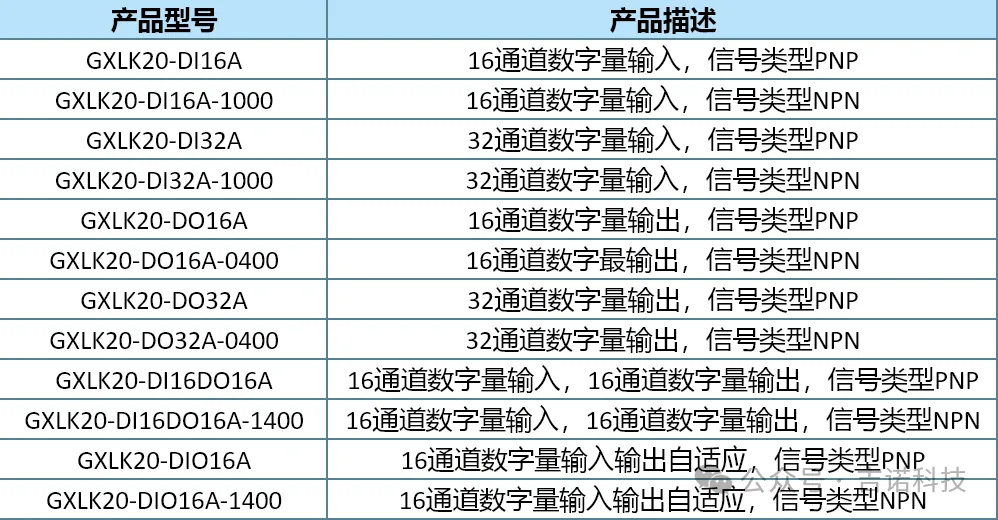

Product parameters
The key parameters of IP20 IO Link Hub are as follows:
1. Working voltage: 30VDC 2. Power protection: Reverse polarity protection 3 Communication protocol: Compliant with IO Link V1.1 specification, Class A interface 4. Transmission speed: COM2 (38.4kbps) 5. Channel type: DI16/DI32/DO16/DO32/DI16DO16/DIO166. Terminal structure: Plug and unplug I/O terminal block 7 Protection level: IP208. Installation method: DIN rail

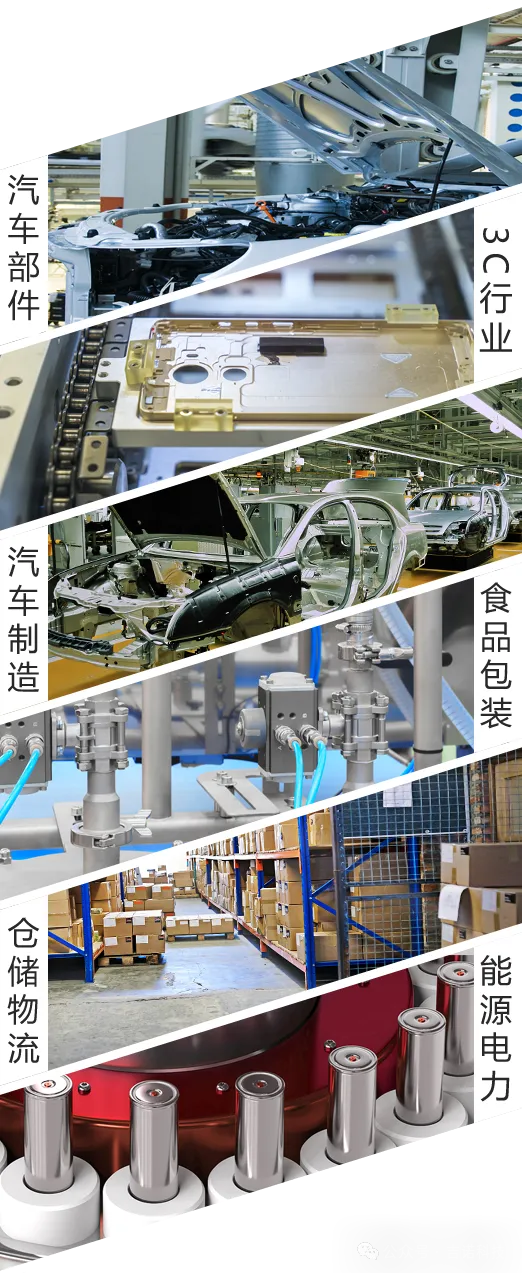

As the core component of IO Link system solutions, IO Link Hub is widely used in the field of industrial automation, such as automotive manufacturing, automotive parts, new energy lithium batteries, warehousing and logistics, 3C industry, food packaging, etc. It can effectively exchange data, improve production efficiency, reduce the occurrence of failures, and greatly enhance the reliability and stability of the system.
Application scenarios
Contact us for more product information!
